Coax -connectoren
Coaxial connector is a high - peRFormance solution designed for various coaxial cable applications. Engineered with precision, it ensures reliable and stable signal transmission, making it an ideal choice for both commercial and industrial use. Such as ours SMA Coax Connector for .086''&.141''&.047'' Series Cables, coaxiale connector die het frequentiebereik bedekt van DC -26.5 GHz .
Beschrijving
Productintroductie

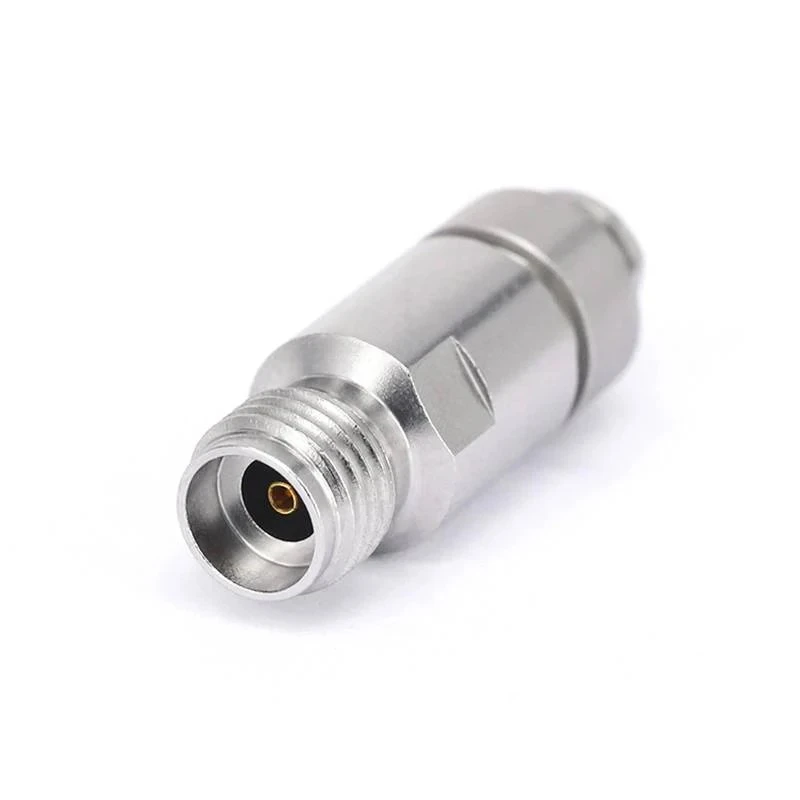

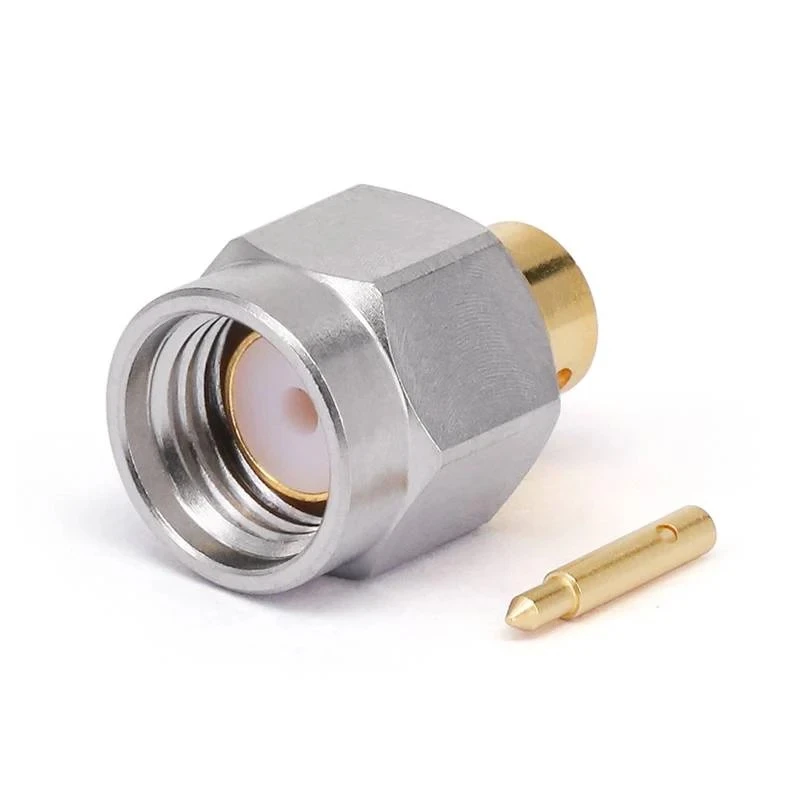

Coaxial connector is a high - performance solution designed for various coaxial cable applications. Engineered with precision, it ensures reliable and stable signal transmission, making it an ideal choice for both commercial and industrial use. Such as ours SMA Coax Connector for .086''&.141''&.047'' Series Cables, coaxial connector that covers the frequency range from DC-26.5GHz. This connector has a Brass body and Stainless Steel body, ensures an excellent microwave performance with low insertion loss and VSWR of 1.25. This connector is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial Toepassingen .
Productlichaamstijl

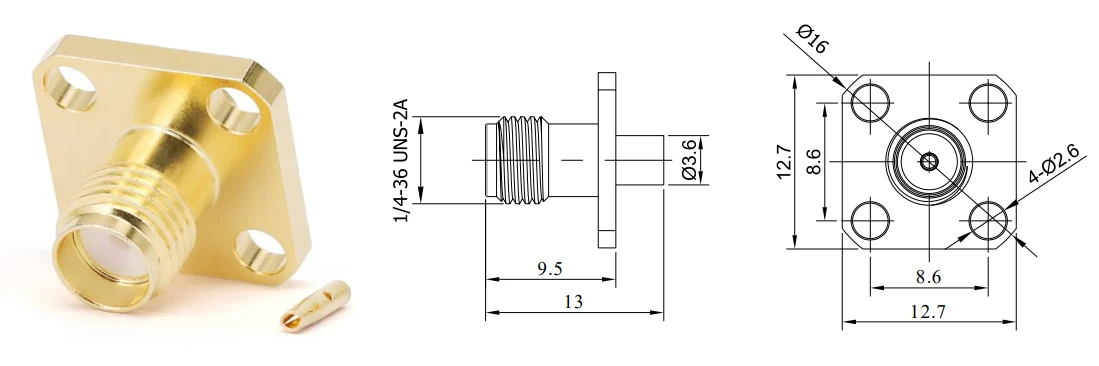

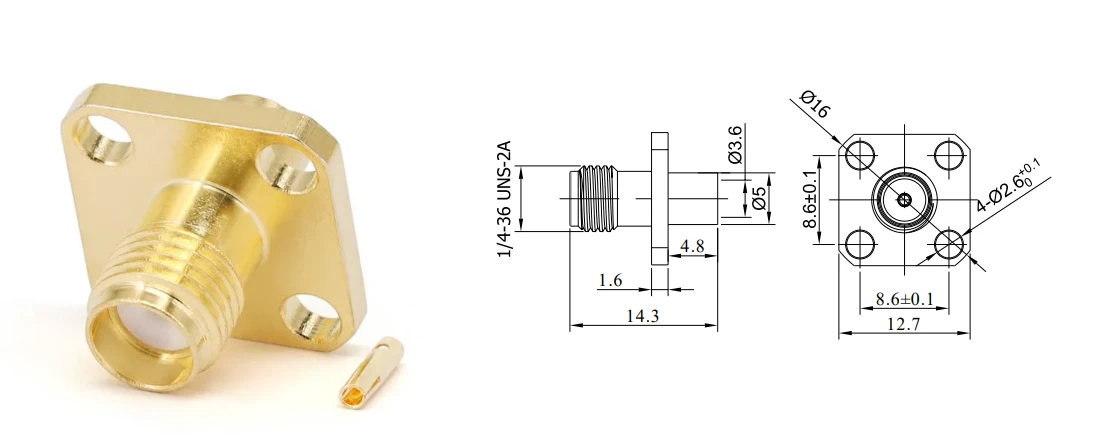

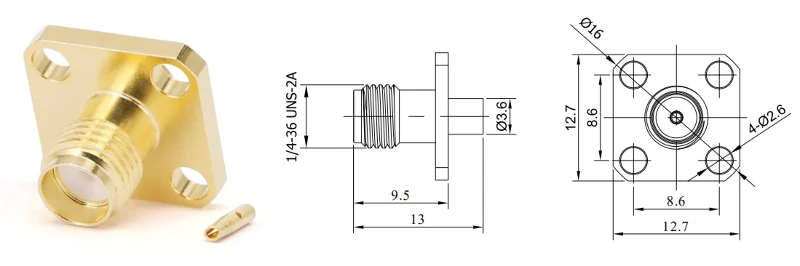

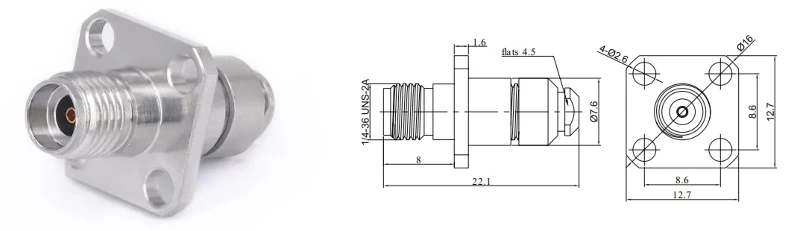

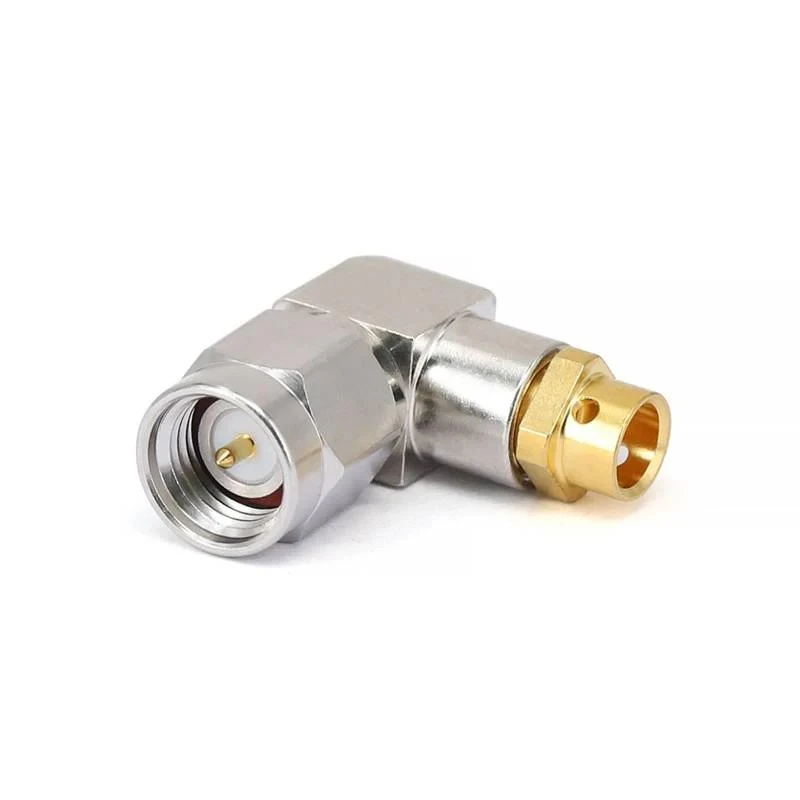

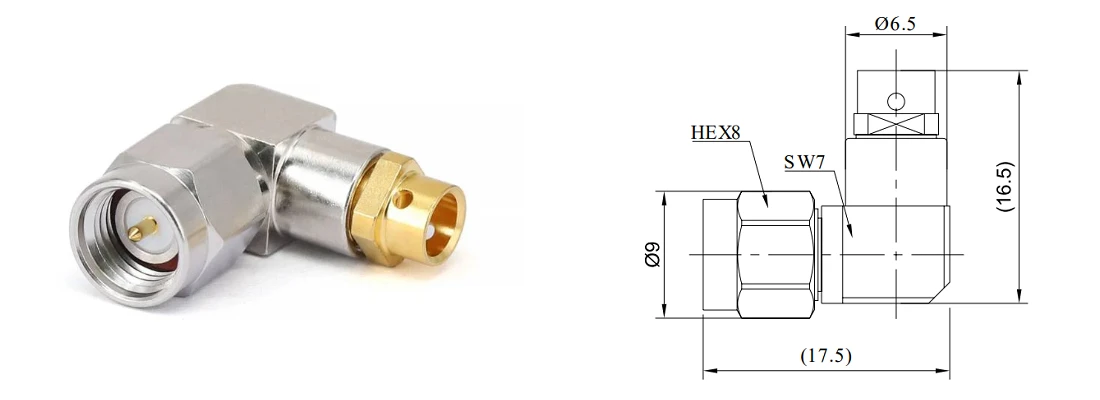

De Coax -connectoren hebben vier soorten lichaamsvormen, zoals rechte, 4 -gatflens, rechthoek, schulkhead mount . We kunnen adapters kiezen met verschillende structuren volgens verschillende toepassingsscenario's .
Producttoepassing
Deze SMA, 2 . 92mm, 2 . 4mm, 1 . 85mm, gpo (smp), ppo (mini-smp) Coaxiale connectorkennissen met veel gebruikte kabelspecificaties:.086}}} .141 {6} {6} {6} {5} {6} {6} {5} {6} {5} {6} {5} {5} {6} {5} {5} {5} {6} {5} {6} '' Kabels en . Bovendien is het perfect compatibel met de 3506, 3507 -serie lage - verliesfase - stabiele kabels. De kabels van 3506 series kunnen uitstekende prestaties behouden in een frequentieband van DC tot 40 GHz, en zelfs tot 67 GHz. Of u nu werkt aan projecten met telecommunicatie, ruimtevaart of test- en meetapparatuur, deze connector biedt naadloze integratie met uw bestaande kabelinfrastructuur.
Inkoop FAQ
Productspecificatiegegevens
|
Configuratie |
|
|
Type connector |
SMA/2,92 mm/2,4 mm/1.85 mm/GPO/GPPO |
|
Connectorimpedantie |
50 ohm |
|
Connectorpolariteit |
Standaard |
|
Connector Mount -methode |
Geen |
|
Connector lichaamsstijl |
Rechte/rechte hoek/schotbevestiging/4 -gatflens |
|
Materiaalinformatie |
|
|
Centrumcontact |
Kubus verguld |
|
Buitenste contact |
Kubus en roestvrij staal |
|
Lichaam |
Kubus en roestvrij staal |
|
Diëlektrisch |
PEI/PTFE |
|
Omgevingsgegevens |
|
|
Temperatuurbereik |
-55 diploma tot +165 diploma |
|
2011/65/EU (ROHS) |
Meewerkend |
Producttype

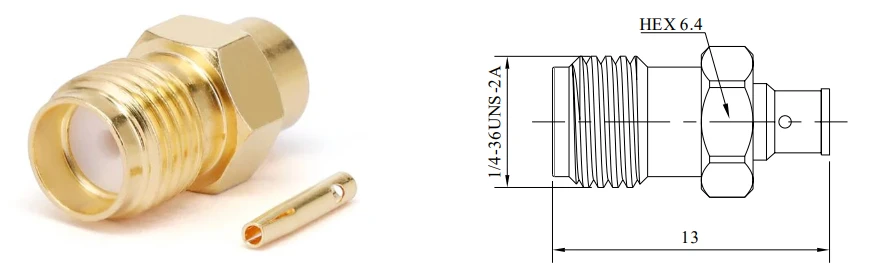

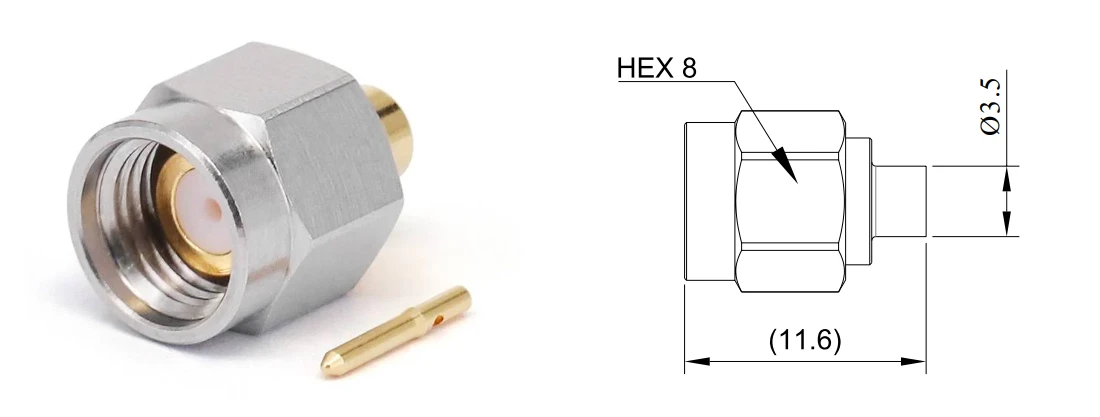

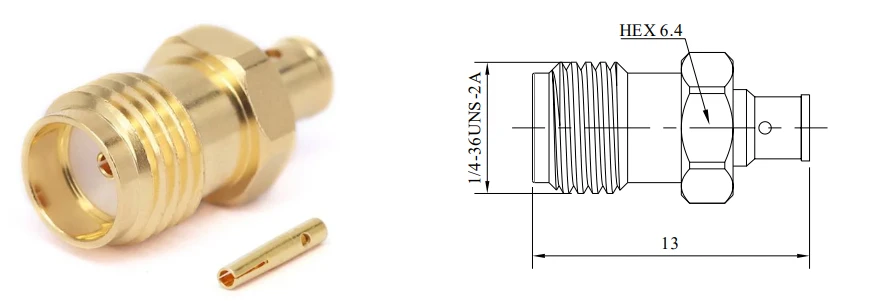

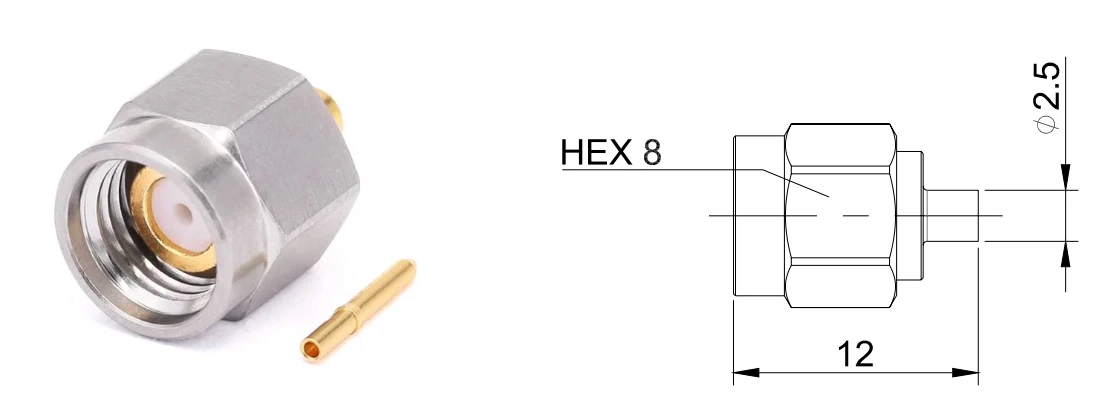

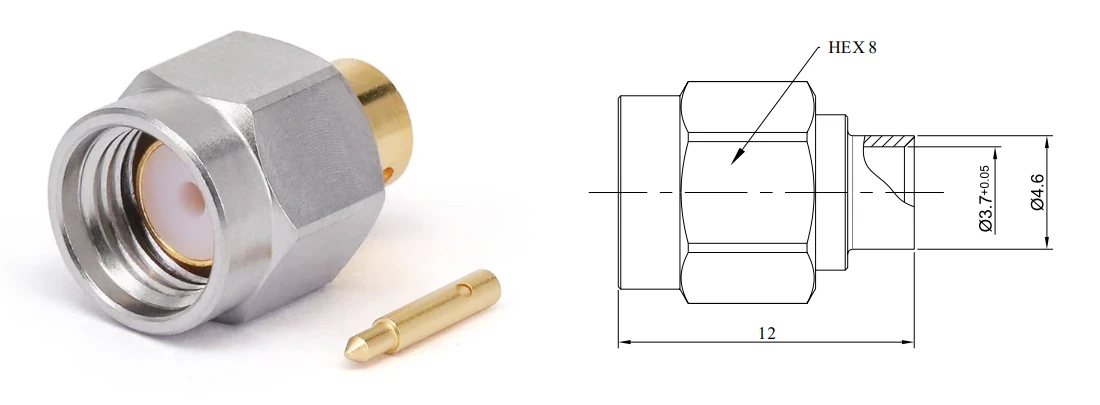

| SMA Coax -connectoren | |||
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-jb3s |
DC -18 GHz |
.141 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-jb2s |
DC -26.5 GHz |
.086 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|

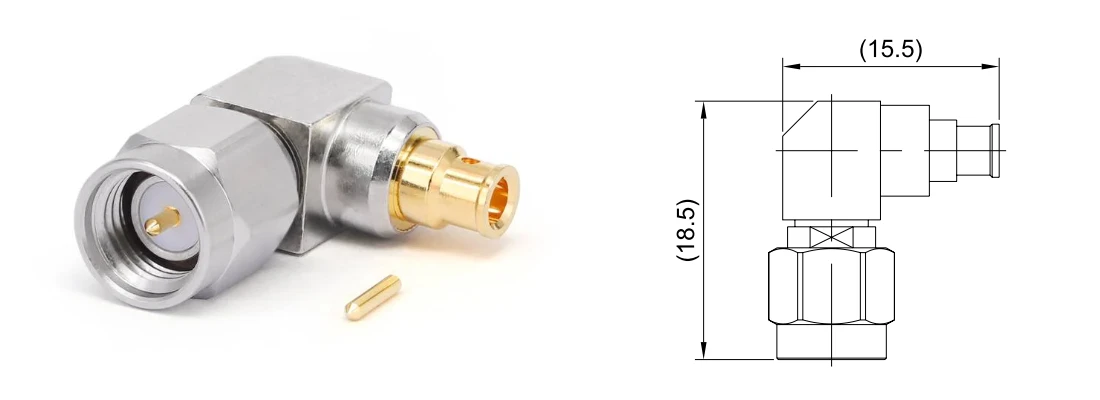

Fr 2- sma-jb1s |
DC -16.5 GHz |
.047 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-jwb 3-2 |
DC -18 GHz |
.141 '' serie |
|
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-jwb1s |
DC -26.5 GHz |
.047 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-kyb3 |
DC -18 GHz |
.141 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-kyb1s |
DC -26.5 GHz |
.047 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|

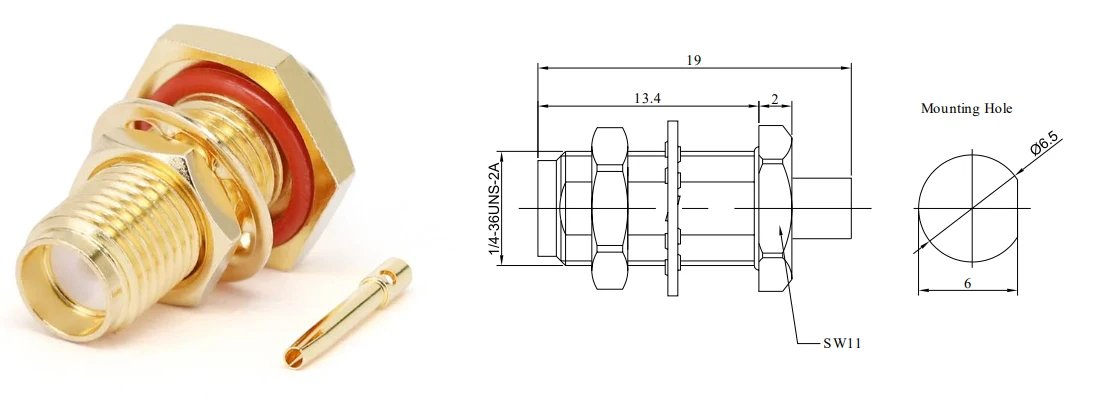

Fr 2- sma-kfb3 |
DC -18 GHz |
.141 '' serie |
|
| SMA Coax -connectoren | |||
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|

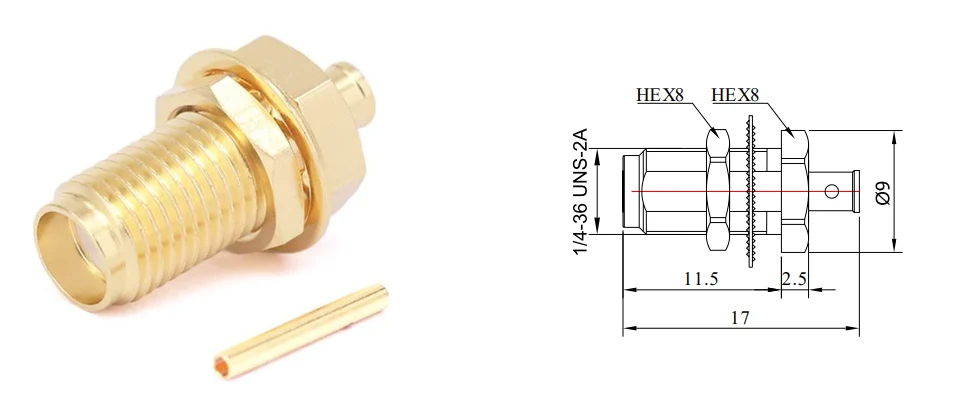

Fr 2- sma-kfb2 |
DC -18 GHz |
.086 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-kb3 |
DC -18 GHz |
.141 '' serie |
|
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- sma-kb2 |
DC -18 GHz |
.086 '' serie |
|

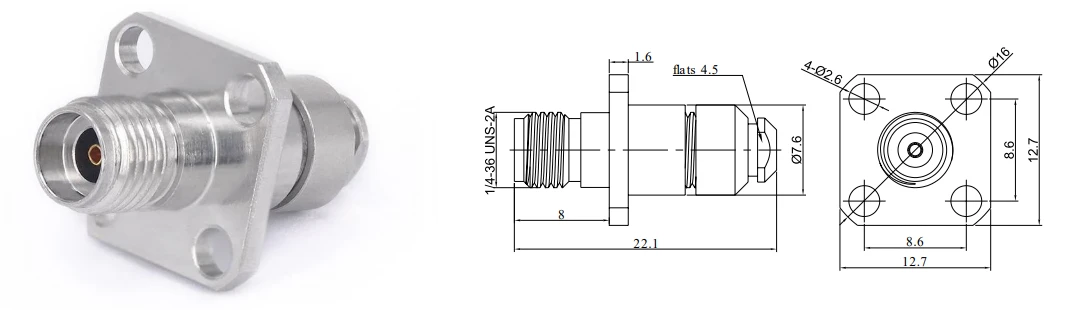

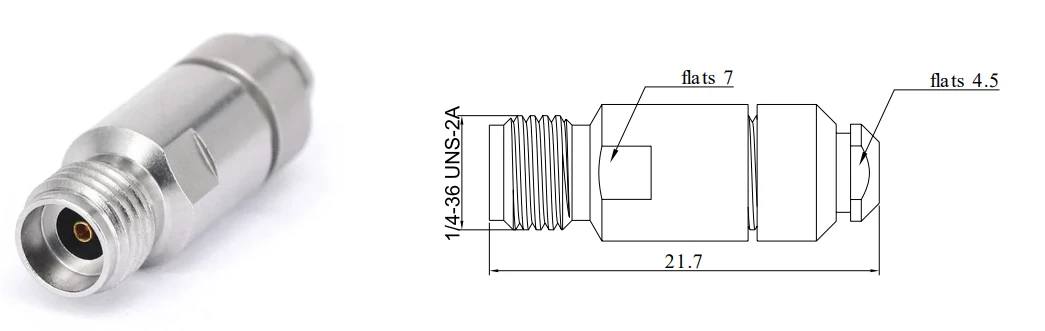

| 2,92 mm Coax -connectoren | |||
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2-2.92- jb 2-1 |
DC -40 GHz |
.086 '' serie |
|
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|

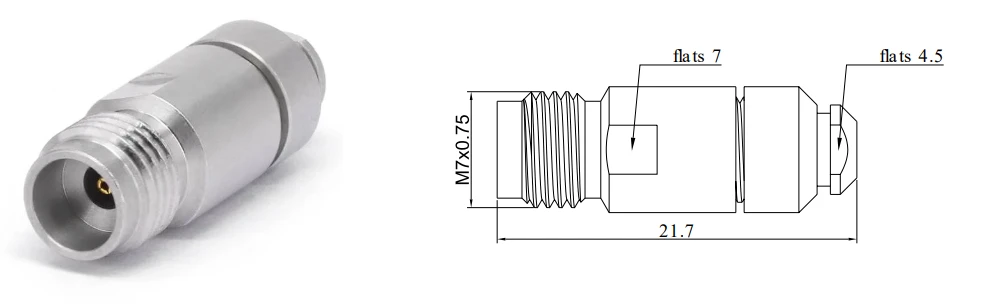

Fr 2-2.92- kb2 |
DC -40 GHz |
.086 '' serie |
|
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2-2.92- kfb2 |
DC -40 GHz |
.086 '' serie |
|

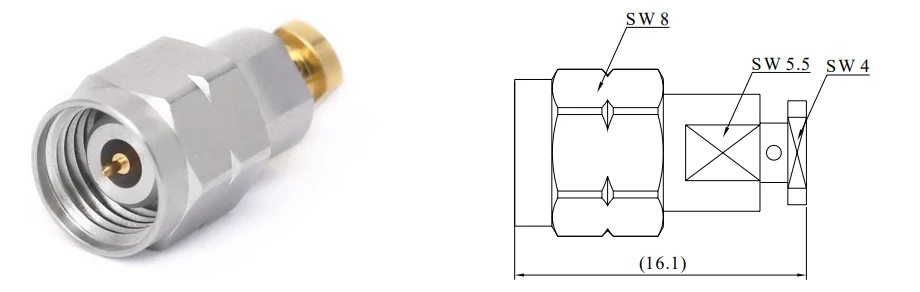

| 2,4 mm Coax -connectoren | |||
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2-2.4- jb 2-1 |
DC -50 GHz |
.086 '' serie |
|
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2-2.4- kb2 |
DC -50 GHz |
.086 '' serie |
|
|
|
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2-2.4- kfb2 |
DC -50 GHz |
.086 '' serie |
|

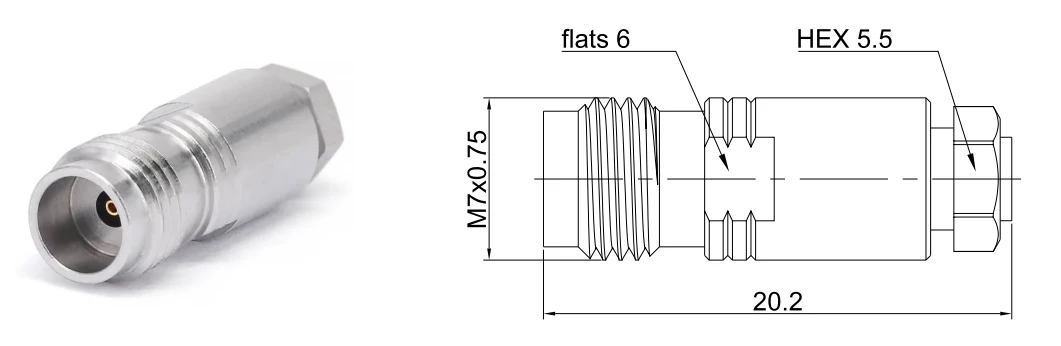

| 1,85 mm Coax -connectoren | |||
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|

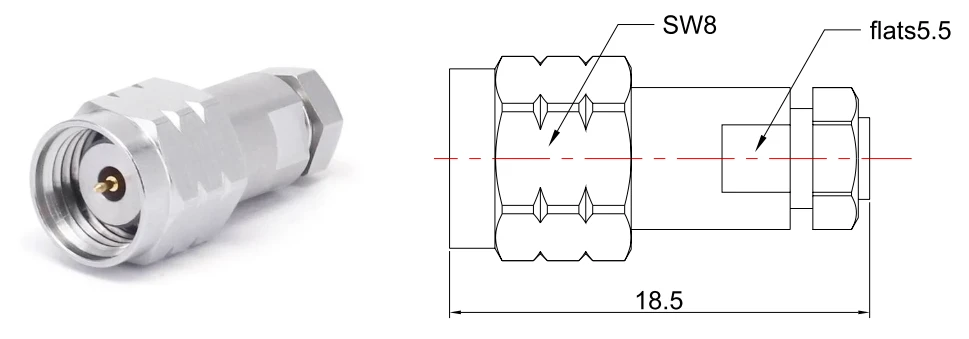

Fr 2-1.85- jb2s |
DC -67 GHz |
.086 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2-1.85- kb2 |
DC -67 GHz |
.086 '' serie |
|

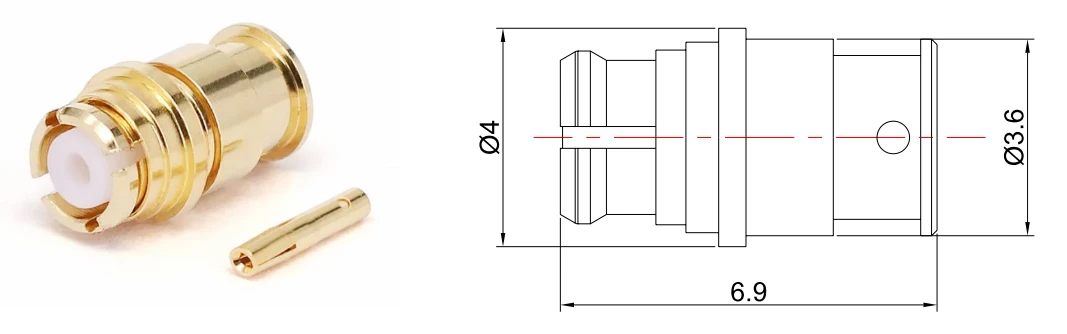

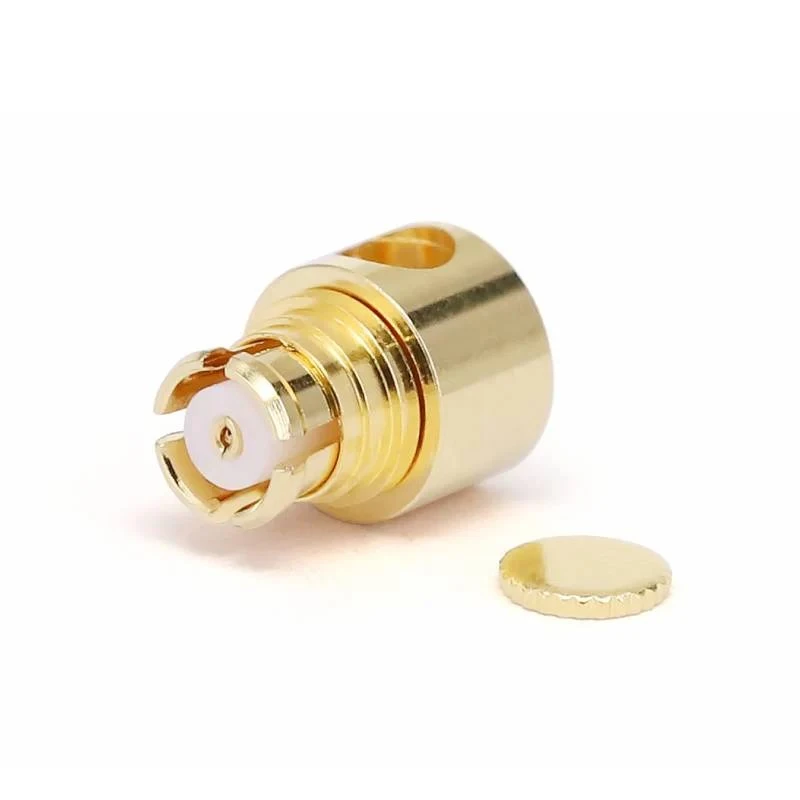

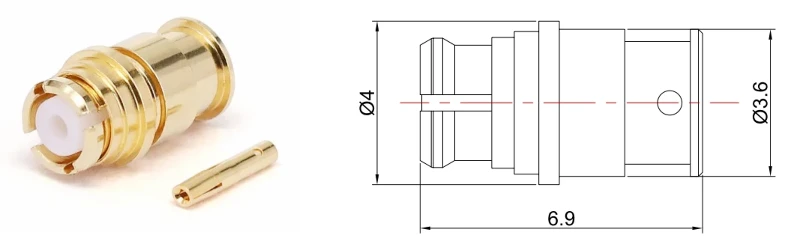

| GPO (SMP) Coax -connectoren | |||
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- gpo-Kwb2 |
DC -26.5 GHz |
.086 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- gpo-kb2 |
DC -40 GHz |
.086 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|

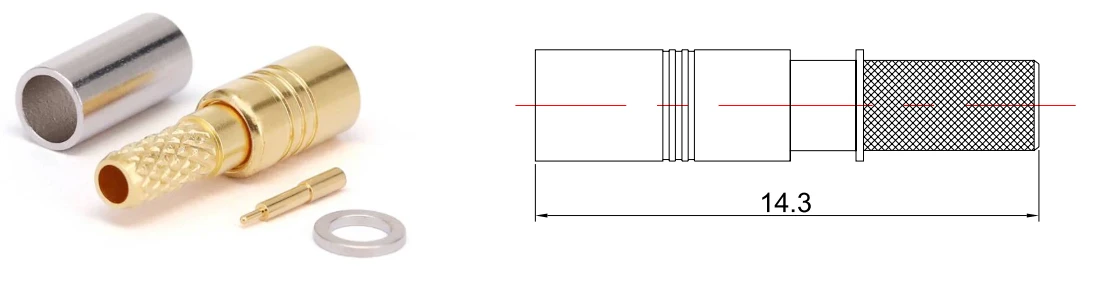

Fr 2- gpo-k3 |
DC -3 GHz |
RG316, RG316D |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- gpo-j3 |
DC -3 GHz |
RG316, RG316D |
|

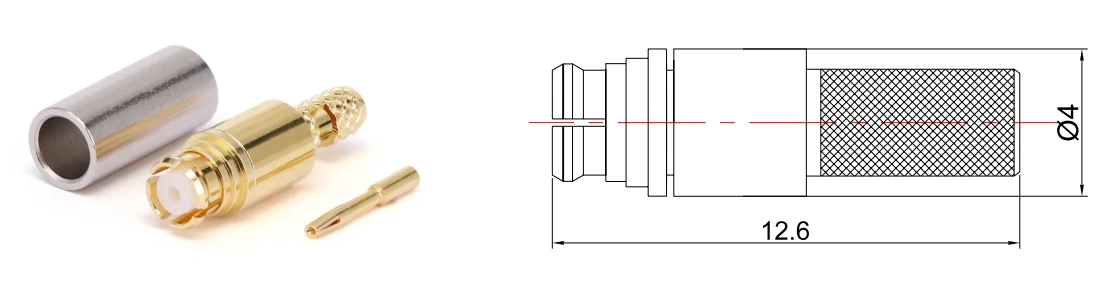

| GPPO (mini-SMP) Coax-connectoren | |||
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|

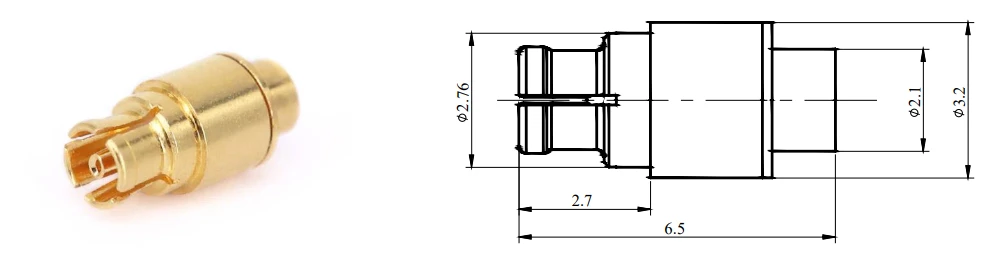

Fr 1- gppo-kb1 |
DC -65 GHz |
.047 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- gppo-kb 2-3 |
DC -65 GHz |
.086 '' serie |
|
 |
|||
|
Sku |
Frequentie |
Matchkabel |
Stripformaat |
|
Fr 2- gppo-kwb2 |
DC -50 GHz |
.086 '' serie |
|
